Case Study: Automated Testing ‘Login with Remember Me’ in Selenium WebDriver

a step by step guide to developing this slightly tricky automated End-to-End test for this common web app feature.

This article is included in the “How to in Selenium WebDriver” series.

“Login with Remember Me” functionality is common, nearly on all web apps, but it is not as easy as you would expect for automated testing this feature properly.

‘Remember Me’ ensures that you remain signed in (with the help of cookies) the next time you visit the site, even after the browser is completely closed. This tutorial will show you how to set Chrome’s options to use the same browser profile and successfully test ‘Remember Me’ in Selenium WebDriver.

1. Test Design

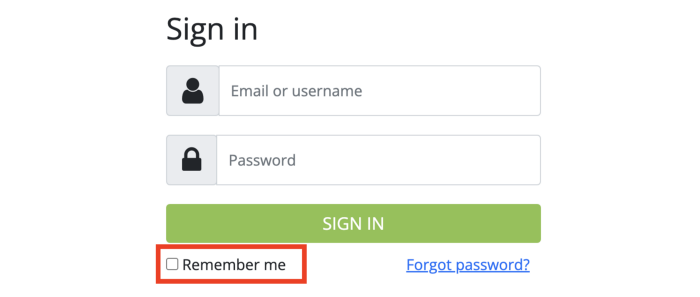

1. Log in with the Remember Me checkbox checked

2. Copied the URL of logged in page, e.g. Dashboard

3. Close the browser

4. Start a new browser

5. Paste the dashboard URL

6. Verify logged in

Perform the above test steps manually, and it will pass.

2. Automated Test failed; why?

Implement the above steps into a Selenium WebDriver test script, as below.

it "sign in with cookie failed because different chrome profile is used" do
  @driver = $driver = Selenium::WebDriver.for(browser_type,  browser_options)
  driver.get(site_url + "/sign-in")
  sign_in("pro", "test01", :remember_me => true)  driver.quit

  # start a new browser session
  @driver = Selenium::WebDriver.for(browser_type,  browser_options)  visit("/dashboard")
  expect(page_text).not_to include("Please log in")
end

The test failed on the last step, expect (page_text).not_to include(“Please log in”).

Screenshot of test’s last screen, the user is not logged in

Why? The manual testing passed, so what is the difference here?

The reason: Selenium WebDriver, by default, starts a new Chrome browser with a new profile each time, which affects the cookies. Browser profiles (on Chrome) do not share cookies.

3. Verify Cookies saved after ‘Remember Me’

When a user chooses to ‘Login with Remember Me’, a cookie entry (often called remember_token) is saved, which is later used for authentication.

The test script below will verify the cookie token has been created.

it "Cookie is created on sign in with remember me and cleared on sign out" do
  sign_in("bob", "test01", :remember_me => true)
  remember_cookie = driver.manage.cookie_named("remember_token")
  expect(site_url).to include(remember_cookie[:domain])
  expect(remember_token_cookie[:value].size()).to eq(22)
  visit("/sign-out")  # shall clear cookie

  # normal sign in
  visit("/sign-in")
  sign_in("wendy", "test01")
  # should not have a cookie
  shall_not_allow {
    remember_cookie = driver.manage.cookie_named("remember_token")
    expect(remember_cookie).to be_nil
  }
  visit("/sign-out")  # shall clear cookie
end

The above might partially serve automated testing the ‘Log in with Remember Me’. It merely checks whether the cookie entry has been created, not actually automatic-signed-in.

Still, how can we use an automated test to test this common feature end-to-end, from a user’s perspective?

4. Try to use the same chrome user data profile

The solution is to avoid creating a new profile each time.

It is possible to specify ChromeDriver to use a specific profile rather than a new profile for each Chrome browser. Choosing a profile can be done in the browser options’ add_arguments and passing a path into user-data-dir.

An example of how this works is like below:

the_chrome_options = Selenium::WebDriver::Chrome::Options.new;
the_chrome_options.add_argument("--user-data-dir=PATH_TO/Test User Data");

The above test script specifies the path to the browser profile (bolded), which will be used when a new Chrome browser is launched.

Note: everytime you run the test, you will need to remove the profile folder first, so a new profile is created and doesn’t rely on existing ones. This is the purpose of the rm_rf , followed by mkdir_p .

$chrome_user_data_dir = "/Users/me/work/projects/testwisely/ui-tests/tmp/chrome-user-data-dir"# remove existing profile
FileUtils.rm_rf($chrome_user_data_dir) if Dir.exists?  ($chrome_user_data_dir)
FileUtils.mkdir_p($chrome_user_data_dir)@driver = Selenium::WebDriver.for(browser_type,
    browser_options(:user_data_dir => $chrome_user_data_dir))
driver.get(site_url)

browser_options is a convenient function defined in the test_helper.rb. The below adds a path to a profile to Chrome options to use the specified profile.

if opts[:user_data_dir] && Dir.exists?(opts[:user_data_dir])
   the_chrome_options.add_argument("--user-data-dir=#{opts[:user_data_dir]}")
end

However, the first time the profile starts up, it will have two tabs.

The New Chrome profile on the first startup has a ‘What’s New’ tab

Because Chrome starts a new empty profile, it assumes you are using it for the first time. But we don’t want that in automation. So, close the browser and start it again.

@driver = $driver = Selenium::WebDriver.for(browser_type,
       browser_options(:user_data_dir => $chrome_user_data_dir))
sleep 1
@driver.quit

# then launch a new ChromeDriver instance again

4. Tidy up and complete script

Before we finish, we should tidy up the $chrome_user_data_dir.

Previously, we used the absolute path to specify the location, but it is better to use a relative path to ensure the test runs OK on a different machine.

Here, I’ve kept it in the tmp folder (same as the absolute path example above) but now uses a relative path.

File.expand_path File.join(File.dirname(__FILE__),
   "../tmp/chrome-user-data-dir")

Also, within the profile directory, Chrome will create many subfolders. Remember to add tmp to your.gitignore to avoid accidentally committing it. If you can exclude it from your testing IDE (such as TestWise), I recommend doing so.

5. The Complete Script

(for the whole test project structure, including test_helper.rb, get it here).

load File.dirname(__FILE__) + "/../test_helper.rb"
describe "Sign in remember me" do
  include TestHelper

  before(:all) do
    $chrome_user_data_dir = File.expand_path File.join(File.dirname(__FILE__), "../tmp/chrome-user-data-dir")
    FileUtils.rm_rf($chrome_user_data_dir) if Dir.exists?($chrome_user_data_dir)
    FileUtils.mkdir_p($chrome_user_data_dir)

    @driver = $driver = Selenium::WebDriver.for(browser_type,
       browser_options(:user_data_dir => $chrome_user_data_dir))
    sleep 1
    @driver.quit # this is to create chrome profile data, otherwise, will start a new tab "What's New"
    @driver = $driver = Selenium::WebDriver.for(browser_type,
    browser_options(:user_data_dir => $chrome_user_data_dir))
    driver.get(site_url)
    reset
  end

  before(:each) do
    visit("/sign-in")
  end

  after(:all) do
    FileUtils.rm_rf($chrome_user_data_dir) if Dir.exists?($chrome_user_data_dir)
    driver.quit unless debugging?
  end

  # Selenium starts a new profile so cookie is no longer valid.
  it "Sign in automativcally from the remember me cookie" do
    sign_in("pro", "test01", :remember_me => true)
    # verify the cookie
    remember_token_cookie =
        driver.manage.cookie_named("remember_token")
    expect(remember_token_cookie[:value].size).to eq(22)
    driver.quit
    sleep 1

    # if we don't specify user data dir,
    #   the cookie saved in previous browser session won't be valid
    @driver = Selenium::WebDriver.for(browser_type,
      browser_options(:user_data_dir => $chrome_user_data_dir))
    visit("/dashboard")
    expect(page_text).not_to include("Please log in")
    expect(page_text).to include("Dashboard")
    visit("/sign-out")  # shall clear cookie
    visit("/dashboard")
    expect(page_text).to include("Please log in")
  end
